รายละเอียดสินค้า:
|
| ชื่อ: | เครื่องขึ้นรูปม้วนโปรไฟล์แผ่นหลังคาสี่เหลี่ยมคางหมูเหล็กชุบสังกะสี | วัสดุ: | พีพีจีไอ/จีไอ |
|---|---|---|---|
| สี: | ตามที่คุณต้องการ | วัสดุเพลา: | 45# เหล็ก |
| ระบบคอนโทรล: | บมจ | การรับประกัน: | 2 ปี |
| เน้น: | galvanized steel roofing sheet machine,thin material roll forming machine,corrugated roofing sheet forming machine |
||

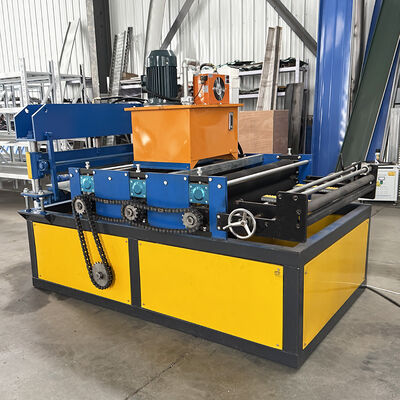

Galvanized Steel Thin Material 0.12mm Barrel Corrugated Roofing Sheet Roll Forming Machine
Components
|
Name |
NO. |
Unit |
|
1.De-coiler |
1 |
set |
|

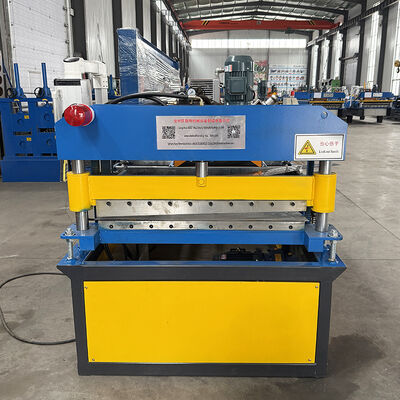

2.Cut to length machine |
1 |
set |
|

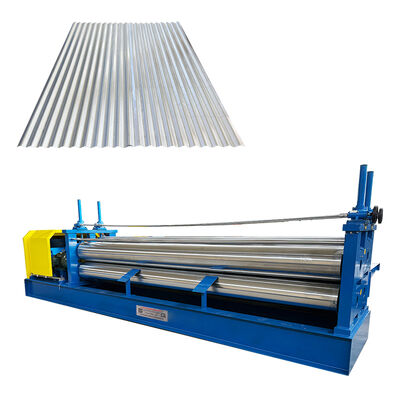

3.Drum machine |
1 |
set |
|
4.PLC control box |
1 |
set |
|
5.Hydraulic pump station |
1 |
set |
|
6.Production support table |
1 |
set |
Technical Parameters:
|
item |
value |
|
Applicable Industries |
Manufacturing Plant |
|
Showroom Location |
None |
|
Condition |
New |
|
Type |
roll forming machine |
|
Tile Type |
Steel |
|
Use |
roof and wall |
|
Production Capacity |
10 m/min |
|
Place of Origin |
China |
|
Voltage |
380V or as required |
|
Dimension(L*W*H) |
5.5*1.65*1.5m |
|
Weight |
7500kg |
|
Warranty |
2 years |
|
Key Selling Points |
High Productivity |
|
Rolling thinckness |
0.3-0.8mm |
|
Feeding width |
1000mm |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Marketing Type |
Hot Product 2022 |
|
Warranty of core components |
1 Year |
|
Core Components |
Motor, Bearing, PLC |
|
After-sales Service Provided |
Online Support |
|
Raw Material |
PPGI |
|
Material Thickness |
0.12-0.3mm |
|
Machine Color |
Customized as Customer's Need |
|
Roller Material |
45# Steel |
|
Shaft Material |
45# Steel |
|
Main Market |
Africa, Southeast Asia, South America etc |
|
PLC |
Delta From Taiwan |
|
Screen |
Touch Screen, Delta |
|
Language |
Chinese, & English, or Customized as Your Need |
Decoiler

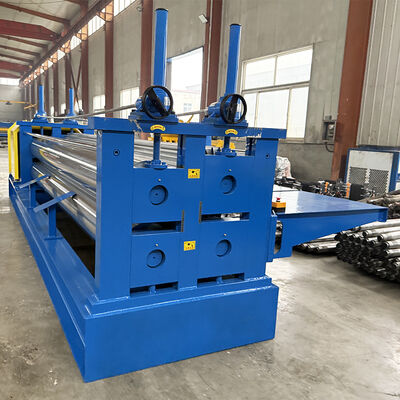

Main roll former
Ø Material Thickness:0.125-0.3mm PPGI and GI Q235MPA
Ø Roller station:2 Groups
Ø Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
Ø Material for shaft: high grade No.45 steel after treatment
Ø Machine frame:100mm steel panel welding
Ø Diameter of forming :390mm (CNC lathe)Feeding roll:340mm
Ø Motor:15kw
Ø Control by switch
Ø Speed:10-15pcs/min
Ø Productity:2-4ton/hour
Ø Transmission: gear with Frequency
Packing
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
